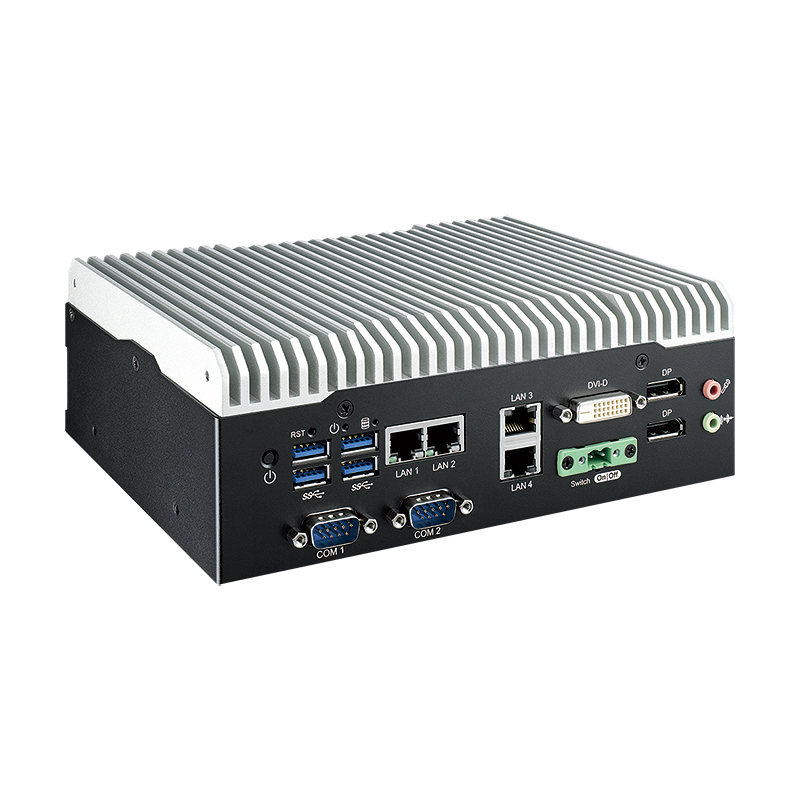

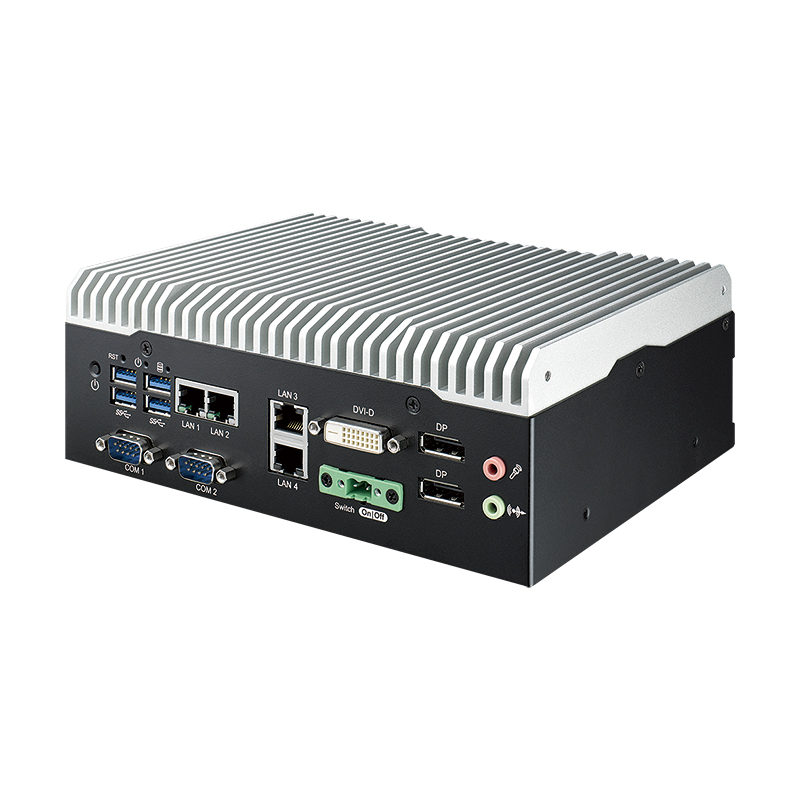

SPC-5600

Features

    • 8 Core 9th/8th Gen Intel® Core™ i7/i5/i3 Processor (Coffee Lake) running with Intel® H310 Chipset
    • DDR4 2666MHz memory, up to 64GB
    • Fanless -25°C to 60°C Operating Temperature, optional supports operation with fan
    • 2 DisplayPort and 1 DVI display interfaces support dual independent displays, up to 4K resolution
    • 4 USB 3.1, 4 COM RS-232/422/485
    • 4 Independent Intel® GigE LAN, iAMT 12.0 supported
    • Supports WiFi/4G/3G/LTE/GPRS/UMTS
    • 2 Mini PCIe sockets for PCIe/USB/SIM Card/mSATA expansions
    • 12V DC Power Input
    • TPM 2.0 supported






    Feature Highlights

       Outstanding Performance

    • 8th gen Intel Core i7/i5/i3 processor (Coffee Lake) + Intel H310 chipset
    • 6 cores computing
    • 2 SO-DIMM sockets, up to 64GB DDR4 memory
    • High-speed data transfer : PCIe 3.0 (8GT/s), SATA III (6G), USB 3.1 (5G), GigE LAN (1G)

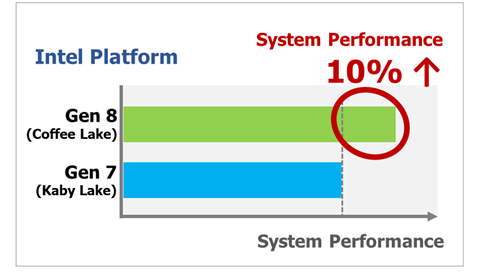

    • More than 10% system performance enhanced than Intel Kaby Lake platform







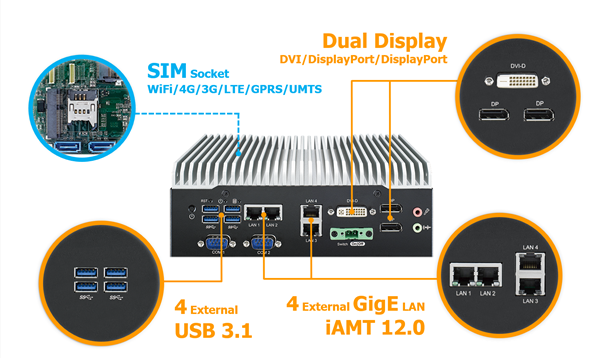

       Compact Integration

    • Dual independent displays : 2 DisplayPort, 1 DVI, up to 4K Resolution
    • 4 USB 3.1 ports, COM RS-232/422/485
    • 4 GigE LAN, iAMT 12.0 supported
    • SIM socket for WiFi/4G/3G/LTE/GPRS/UMTS









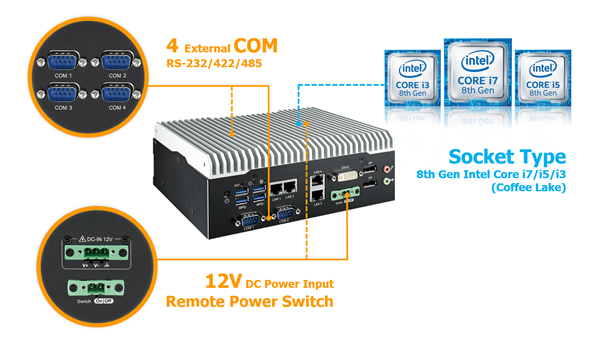

       User Friendly

    • Flexible CPU/Memory configuration
    • Smart System Management : TPM, Wake on LAN, PXE
    • 12V DC Power Input
    • Remote Power Switch
    • Optional fan operation







       Trusted Reliability

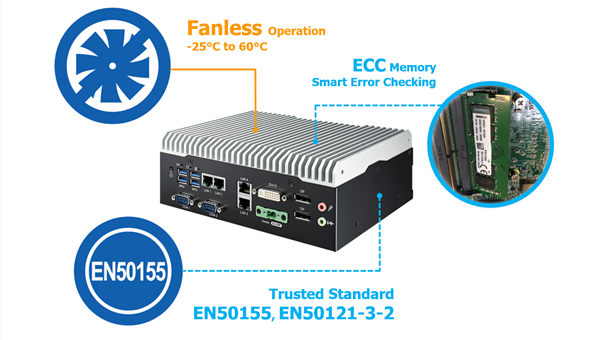

    • Fanless design
    • -25°C to 60°C Operation
    • Supports iAMT 12.0, TPM 2.0, RAID 0, 1
    • ECC Memory, Intel LAN
    • Industrial-grade longevity
    • Anti-shock, Anti-vibration
    • EN50155 & EN50121-3-2 compliant



Overview

    Powered by 9th/8th generation 8 cores  Intel® Xeon®/Core™ i7/i5/i3 processor (Coffee Lake Refresh/Coffee Lake), running with Intel® H310 chipset, fanless,  -20°C to 60°C operating temperature, optional supports fan design, dual independent displays, up to 4K resolution, 4 USB 3.1 connections, outstanding system performance, WiFi/4G/3G/LTE/GPRS/UMTS mobile availability, user-friendly with smart manageability, iAMT 12.0, TPM 2.0 supported, 12V DC power input, optional support 9V to 36V wide range DC power input, flexible expansion for PCIe/USB/SIM card/mSATA, VESA mount and DIN-Rail mount availability, Vecow SPC-5600 Series High-performance Fanless Systems is ideal for Vehicle Computing, Smart Manufacturing, In-vehicle Infotainment, Intelligent Control or any Industrial 4.0/IIoT applications.




Specifications

System
Processor 8 Cores Intel® Core™ i7/i5/i3 processor (CFL-R S)
Chipset Intel® H310 Chipset
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2666MHz SO-DIMM, up to 64GB (ECC/Non-ECC)

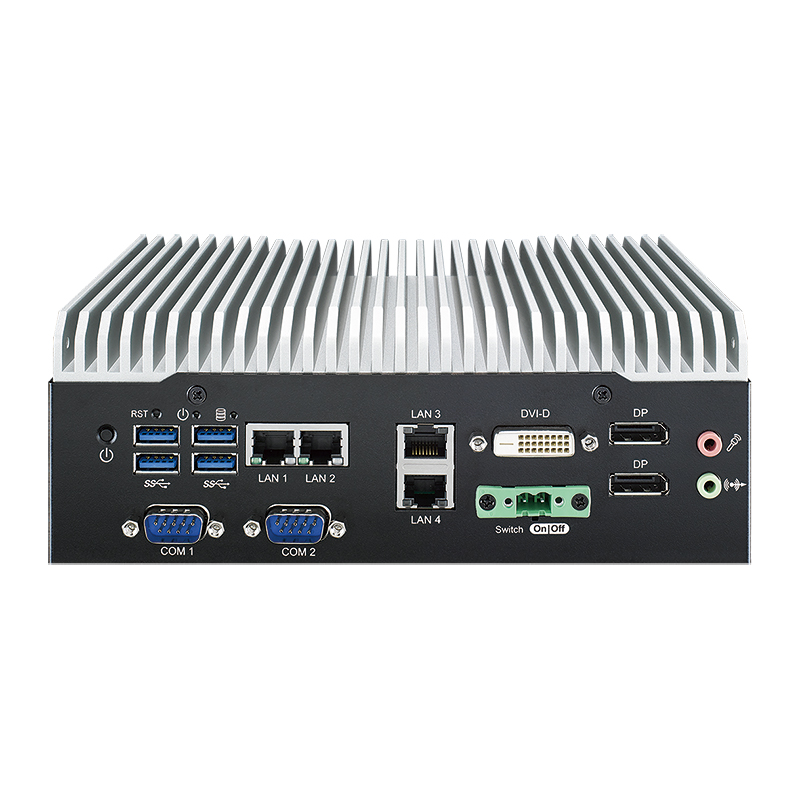

I/O Interface
Serial  4 COM RS-232/422/485 (ESD 8KV)
USB
- 4 USB 3.1 (External)
- 2 USB 2.0 (Internal)
LED Power, HDD
SIM Card  1 SIM Card Socket (Internal)
Expansion
Mini PCIe
2 Mini PCIe sockets：
- 1 Full-size for PCIe/USB/SIM Card
- 1 Full-size for PCIe/USB/mSATA
Graphics
Graphics Processor - Intel® UHD graphics 630
Interface
- 2 DisplayPort : Up to 4096 x 2304 @60Hz
- DVI-D : Up to 1920 x 1200 @60Hz
Storage
SATA 2 SATA III (6Gbps)
mSATA 1 SATA III (Mini PCIe type, 6Gbps)
Audio
Audio Codec Realtek ALC888S, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 GigE LAN
LAN 3 Intel® I210 GigE LAN
LAN 4 Intel® I210 GigE LAN

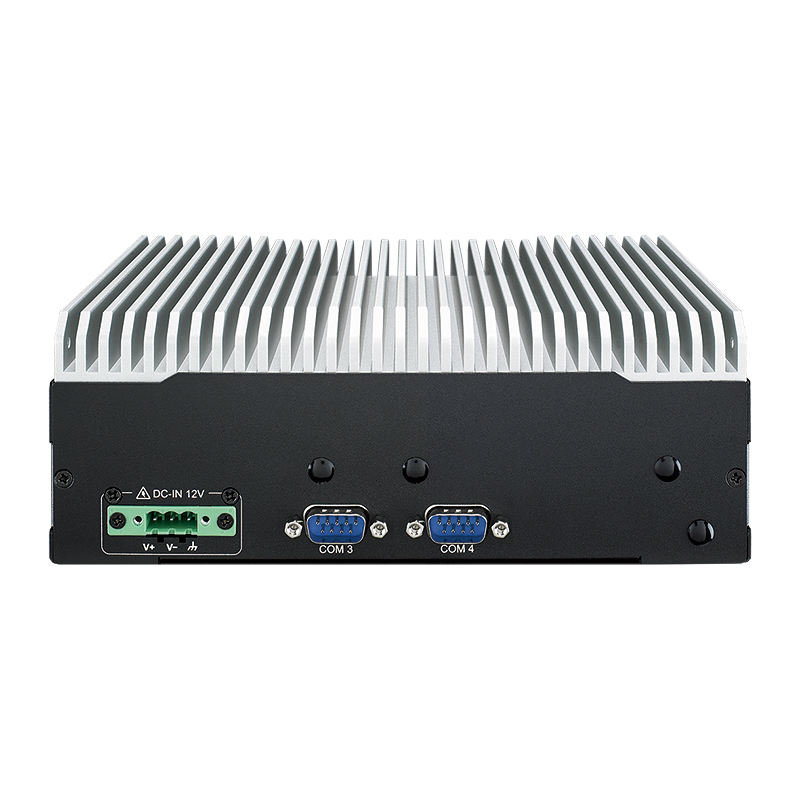

Power
Power Input 12V DC-in  (±5%)
Power Interface 3-pin Terminal Block：V+, V-, Frame Ground
Remote Switch 2-pin Terminal Block
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension (W x L x H) 209.0mm x 150.5mm x 75.0mm (8.23" x 5.93" x 2.95")
Weight 2.4 kg (5.29 lbs)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature
35W TDP CPU：-25°C to 60°C (-13°F to 140°F)
65W TDP CPU with Fan : -25°C to 60°C (-13°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 60°C
Shock
- IEC 60068-2-27
- SSD : 50G@Wallmount, Half-sine, 11ms
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2





Resources

Item File Name Format File Update Download
SPC-5600 SPC-5600 DM (English) .PDF 2023/4/18 Download
SPC-5600 SPC-5600 DM (簡體中文) .PDF 2023/4/21 Download
SPC-5600 SPC-5600カタログ (日本語) .PDF 2023/4/21 Download
SPC-5600 SPC-5600 User Manual .PDF 2023/4/18 Download
SPC-5600 SPC-5600 Series CE and EN50155 & EN50121-3-2 Certification .PDF 2020/1/3 Download
SPC-5600 SPC-5600 Series CE Report .PDF 2020/1/3 Download
SPC-5600 SPC-5600 Series FCC Certification .PDF 2020/1/3 Download
SPC-5600 SPC-5600 Series FCC Report .PDF 2020/1/3 Download
SPC-5600 SPC-5600 Series EN50155 & EN50121-3-2 Report .PDF 2020/1/3 Download
SPC-5600 SPC-5600 Series High and Low Temperature Test Report .PDF 2020/6/1 Download
SPC-5600 SPC-5600 Series Vibration and Shock Test Report .PDF 2020/6/1 Download
SPC-5600 SPC-5600 Series (with Fan Bracket) High and Low Temperature Test Report .PDF 2020/6/1 Download
SPC-5600 SPC-5600 Series (with Fan Bracket) Vibration and Shock Test Report .PDF 2020/6/1 Download
SPC-5600 SPC-5600 Series Chipset Driver .ZIP 2019/12/11 Download
SPC-5600 SPC-5600 Series Graphics Driver 01 .ZIP 2019/12/11 Download
SPC-5600 SPC-5600 Series Graphics Driver 02 .ZIP 2019/12/11 Download
SPC-5600 SPC-5600 Series LAN Driver .ZIP 2019/12/11 Download
SPC-5600 SPC-5600 Series ME Driver 01 .ZIP 2019/12/11 Download
SPC-5600 SPC-5600 Series ME Driver 02 .ZIP 2019/12/11 Download
SPC-5600 SPC-5600 Series Hardware Monitor UI UM .PDF 2019/12/13 Download
SPC-5600 SPC-5600 Series Hardware Monitor UI Beta .ZIP 2019/12/16 Download
