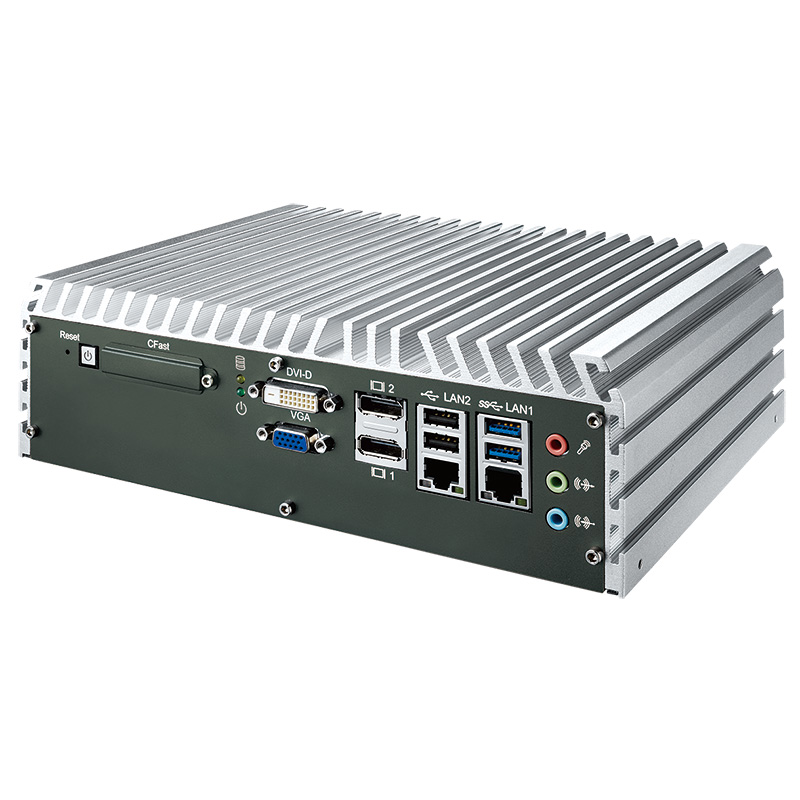

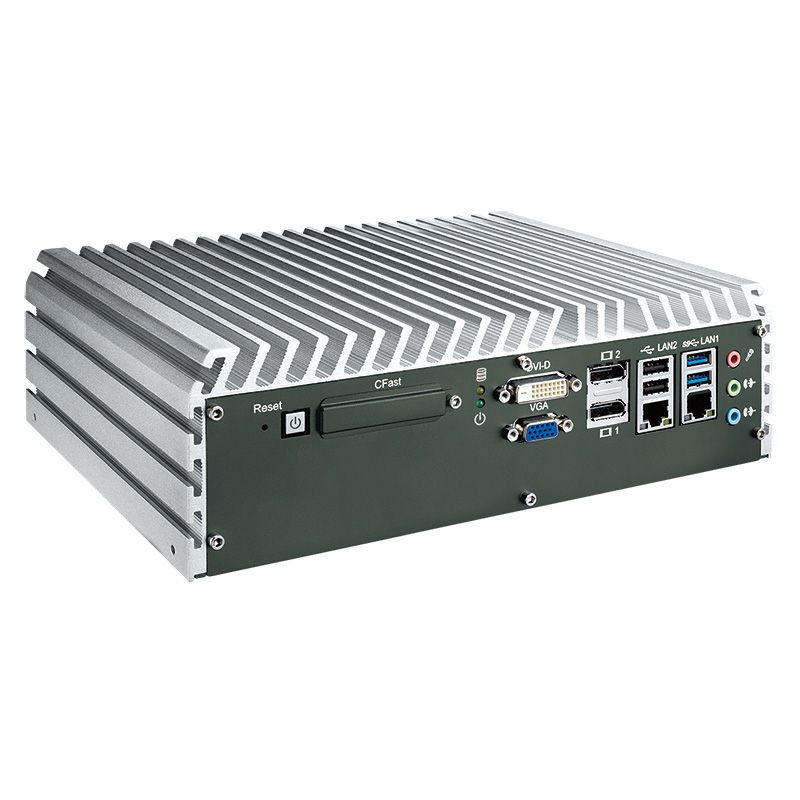

ECS-7000-6G

Features

    • 3rd Gen Intel® Core™ i7/ i5/ i3 Ivy Bridge Mobile Processor
    • Fanless, -25°C to 70°C Operation Temperature
    • 6 GbE LAN for Extend Internet Application
    • QM77 System Chipset
    • 2 SO-DIMM DDR3 or DDR3L, up to 16GB
    • Built-in Input 80V DC Overvoltage Protection
    • Rich I/O : 4 COM, 4 USB 3.0, 2 USB 2.0, 2 Mini PCIe (1 with SIM Card Socket)
    • 5 Display Interface : 2 DisplayPort, DVI-D, VGA, LVDS, 3 Independent Displays
    • 2 SATA III (6Gbps) 2.5" SSD/HDD, mSATA
    • Intel® AMT 8.0 supported
    • Onboard Trusted Platform Module (Optional)
    • E13, EN50155, EN50121-3-2, VMware Ready



Overview

    ECS-7000-6G supports 3rd Gen Intel® Core™ i7/ i5/ i3 series processor (6M Cache, up to 3.30 GHz), DDR3L and DDR3 maximum dual channel 16GB ram, 3 independent display (DisplayPort, DVI-D, and VGA), 6 GbE LANs, CFast, two 2.5” SATA 6Gp/s HDD/SSD trays, 4 COM, 4 USB 3.0 ports, JST connector, and 2 Mini PCIe, plus with overvoltage protection and Trusted Platform Module which making ECS-7000-6G stands out from others in machine vision and GigE imaging, intelligent automation, surveillance and security, and most of embedded applications. ECS-7000 full series powered by Quad Core 3rd Gen Intel® Core™ i7 Processor (6M Cache, up to 3.3 GHz) not only increasing power efficiency as much as 25% also integrates Intel® HD 4000 graphics and extremely low thermal design power as 35W providing an enhanced reliability, safety and shock resistance for fanless operation required environments. With 6 GbE LAN, ECS-7000-6G provides stable and speedy Ethernet with 9.6 kb/s to 1 Gb/s data transmission option for high bandwidth and supports Ethernet Control Automation Technology (EtherCAT).

Specifications

System
Processor Intel® Core™ i7-3610QE/ i5-3610ME/ i3-3120ME
Chipset Intel® QM77
BIOS AMI
SIO IT8783
Memory 2 DDR3 1066/ 1333/ 1600 MHz or DDR3L 1066/ 1333 MHz SO-DIMM, up to 16GB

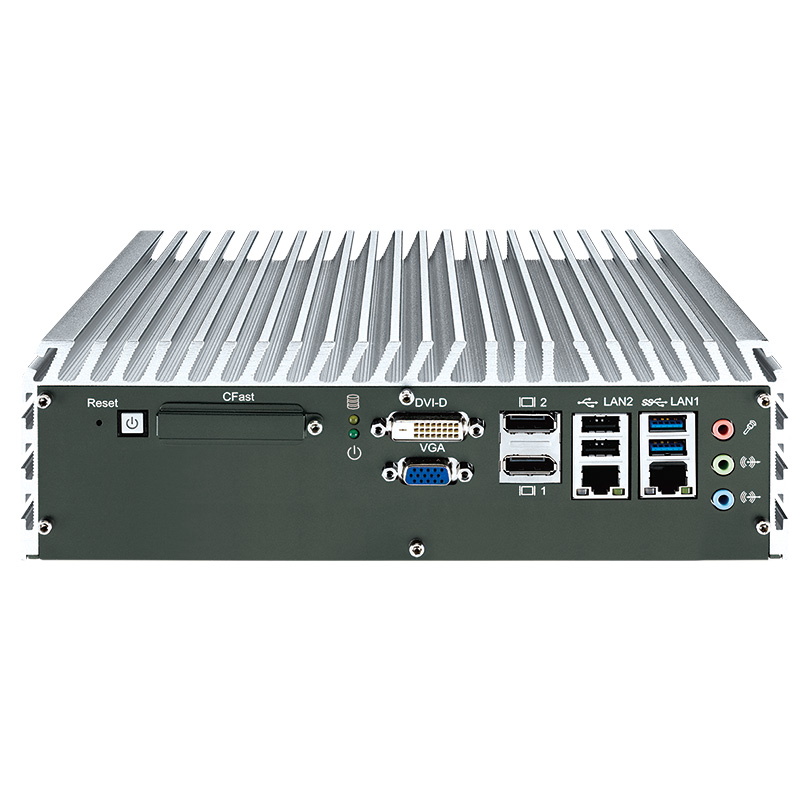

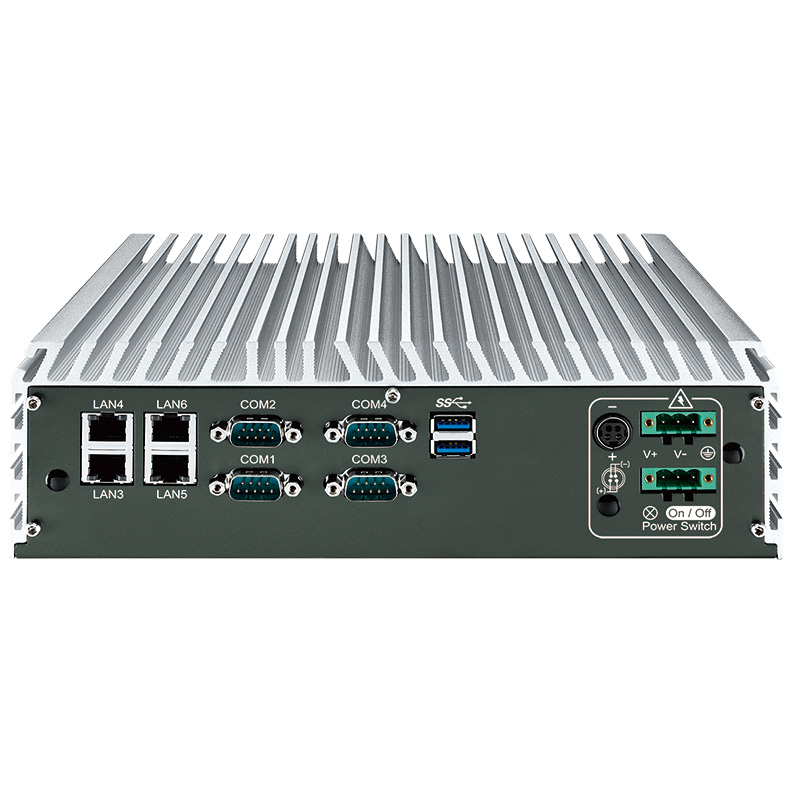

I/O Interface
Serial
- 1 COM RS-232/ 422/ 485
- 3 COM RS-232
USB
- 4 USB 3.0 (External)
- 4 USB 2.0 (2 External, 2 Internal by JST Connector)
gpio 16 GPIO (Internal)
LED Power, HDD
SIM Card 1 SIM Card Socket (Internal)
Expansion
Mini PCIe
2 Mini PCIe Socket :
- 1 Mini PCIe for PCIe/ USB/ Internal SIM Card/ Optional mSATA
- 1 Mini PCIe for PCIe/ USB/ Optional mSATA
Graphics
Chipset Intel® HD 4000
Display Memory Shared Memory, Up to 1.7GB
Interface
- VGA : DB-15, up to 1920 x 1200
- DVI-D : Up to 1920 x 1200
- DisplayPort 1 : Up to 2560 x 1600
- DisplayPort 2 : Up to 1920 x 1200
- LVDS : Dual channel 24-bit, up to 1920 x 1200
Storage
SATA
- 2 SATA III (6Gbps)
- 1 SATA II (3Gbps), supports horizontal type SATA DOM
mSATA 2 SATA II (Mini PCIe Type, 3Gbps)
Storage Device
- 1 CFast Socket, Push-in/ Push-out Ejector
- 2 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface Line-in, Line-out, Mic-in
Ethernet
LAN 1 Intel® 82579LM Gigabit LAN supports iAMT 8.0
LAN 2 Intel® 82574L Gigabit LAN
LAN 3 Intel® 82574L Gigabit LAN
LAN 4 Intel® 82574L Gigabit LAN
LAN 5 Intel® 82574L Gigabit LAN
LAN 6 Intel® 82574L Gigabit LAN
Power
Power Input 6V to 36V, DC-in
Power Interface
- 3-pin Terminal Block : V+, V-, Frame Ground
- Mini-DIN 4-pin
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
Trusted Platform Module (TPM) Optional Infineon SLB9635 supports TPM 1.2, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

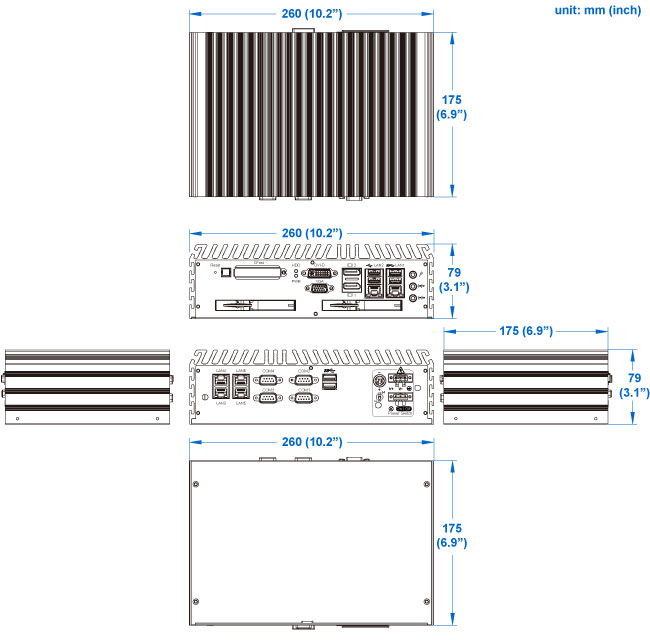

Dimensions (W x L x H) 260mm x 175mm x 79mm (10.2" x 6.9" x 3.1")
Weight 2.8 kg (6.2 lb)
Mounting
- Wallmount by mounting bracket
- 2U Rackmount (Optional)
Environment
Operating Temperature -25°C to 70°C  (-13°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 10% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
Certification E13, CE, FCC, EN50155, EN50121-3-2, VMware Ready



Resources

Item File Name Format File Update Download
ECS-7000-6G ECS-7000 Series DM .PDF 2014/11/27 Download
ECS-7000-6G ECS-7000-6GDE/6GD/6R/6G/6F Datasheet .PDF 2016/11/11 Download
ECS-7000-6G ECS-7000-6G Datasheet .PDF 2016/2/15 Download
ECS-7000-6G ECS-7000 Series User Manual V1.0.6 .PDF 2015/11/13 Download
ECS-7000-6G ECS-7000 Series CE Certification .PDF 2014/1/3 Download
ECS-7000-6G ECS-7000 Series CE Report .PDF 2014/1/3 Download
ECS-7000-6G ECS-7000 Series FCC Certification .PDF 2014/1/3 Download
ECS-7000-6G ECS-7000 Series FCC Report .PDF 2014/1/3 Download
ECS-7000-6G ECS-7000 Series FCC Appendix .PDF 2014/1/3 Download
ECS-7000-6G ECS-7000 Series E13 Certificate and Test Report .PDF 2016/6/6 Download
ECS-7000-6G Conformance Test Report For EN 50155 & EN 50121-3-2 .PDF 2014/7/24 Download
ECS-7000-6G ECS-7000 Series Operation Temperature Testing Report - High Temperature .PDF 2014/1/16 Download
ECS-7000-6G ECS-7000 Series Operation Temperature Testing Report - Low Temperature .PDF 2014/1/16 Download
ECS-7000-6G ECS-7000 Series 85C Humidity Test Report .PDF 2014/8/21 Download
ECS-7000-6G ECS-7000 Series Shock & Vibration Test Report .PDF 2016/8/4 Download
ECS-7000-6G ECS-7000 Series Driver for Windows 8 & Windows 7 (64bit) .ZIP 2015/8/11 Download
ECS-7000-6G ECS-7000 Series Driver for Windows 8 & Windows 7 (32bit) .ZIP 2015/8/11 Download
ECS-7000-6G ECS-7000 Series Graphics Driver for Windows 8 & Windows 7 (64bit) .ZIP 2015/8/11 Download
ECS-7000-6G ECS-7000 Series Graphics Driver for Windows 8 & Windows 7 (32bit) .ZIP 2015/8/11 Download
ECS-7000-6G ECS-7000 Series Driver for Windows XP .ZIP 2016/12/19 Download
