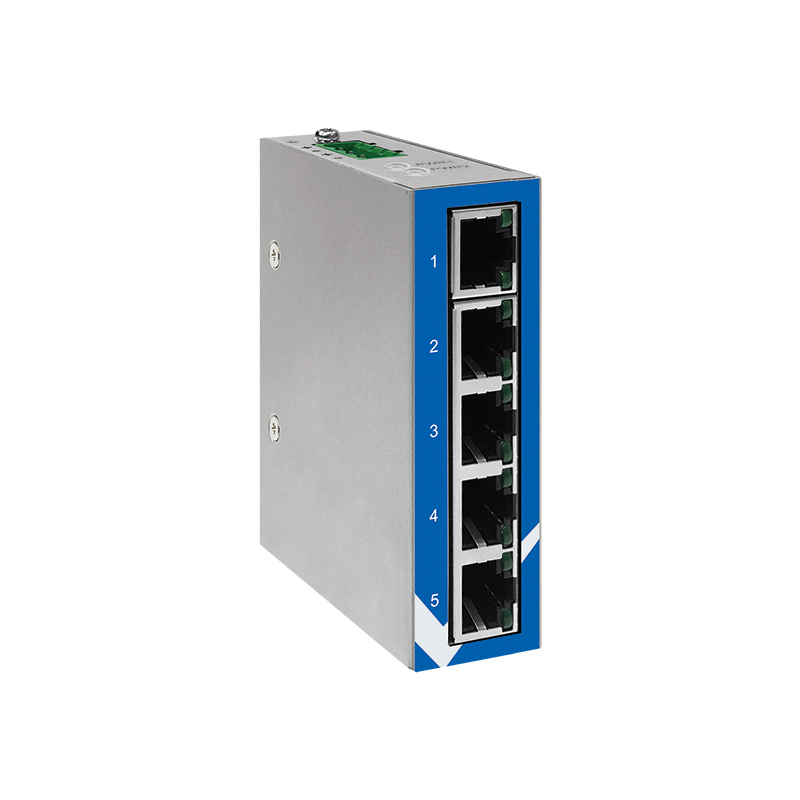

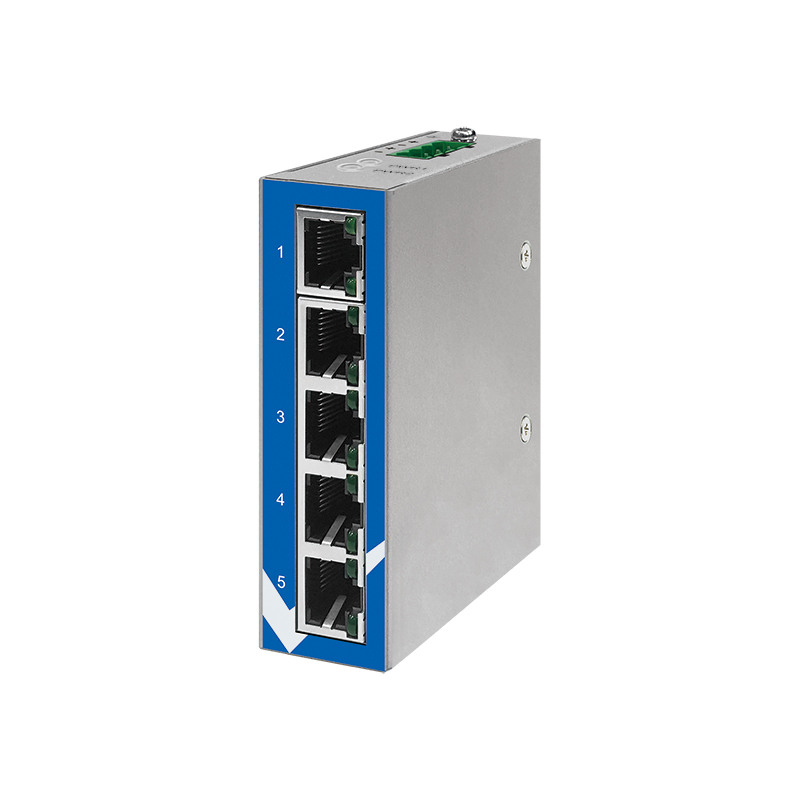

VLS-2105

產品特色

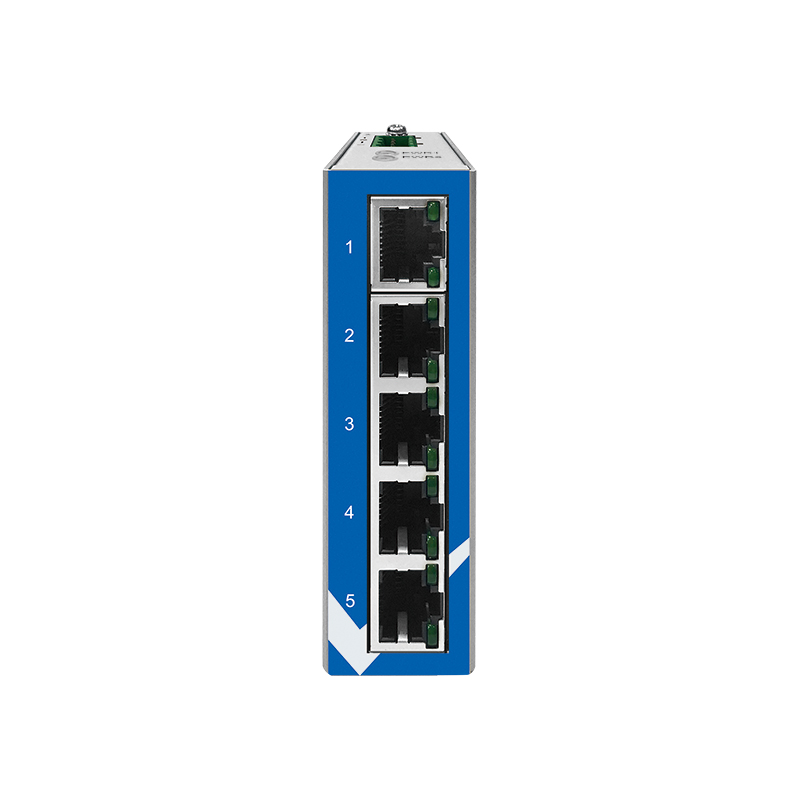

    ・5 10/100 Mb Copper Ports
    ・IEEE 802.3x Flow Control & Back-Pressure
    ・Layer 2 Line-Speed Switching Fabric, Non-Blocking
    ・Fanless Design with Wide Temperature Range (-40°C to 75°C)
    ・Redundant Power Input 10V to 60V DC
    ・Reverse Power Protection
    ・Support Din Rail or Wall Mount Installation
    ・IP 30 Protection
    ・Rugged and Compact Size Design

產品簡介

    Vecow VLS-2000 Series, the Layer 2 unmanaged Ethernet switch, features easy to access plug and play Gigabit ports, available with 10-port and 8-port. Vecow VLS-2000 Series supports redundant power input 12V to 58V DC and a wide temperature range of-40°C to 75°C. The series is a rugged design and equipped with an IP30 rated enclosure, designed to withstand a high degree of vibration and shock, ideal for industrial environment deployments.



產品規格

Ethernet
Operating Mode
Store and Forward, L2 wire-speed/non-blocking switching engine
MAC Addresses 1K
Packet Buffer 1 Mbits
Backplane/
Switching Fabric
 1Gbps
RJ45 Copper Ports
Speed 10/100 Mbps
MDI/MDIX
Auto-crossover
 Support straight or cross wired cables
Auto-negotiation/
Duplex
 10/100 Mbps speed auto-negotiation; Full & Half Duplex
Power
Power Input  12V to 60V, DC-in

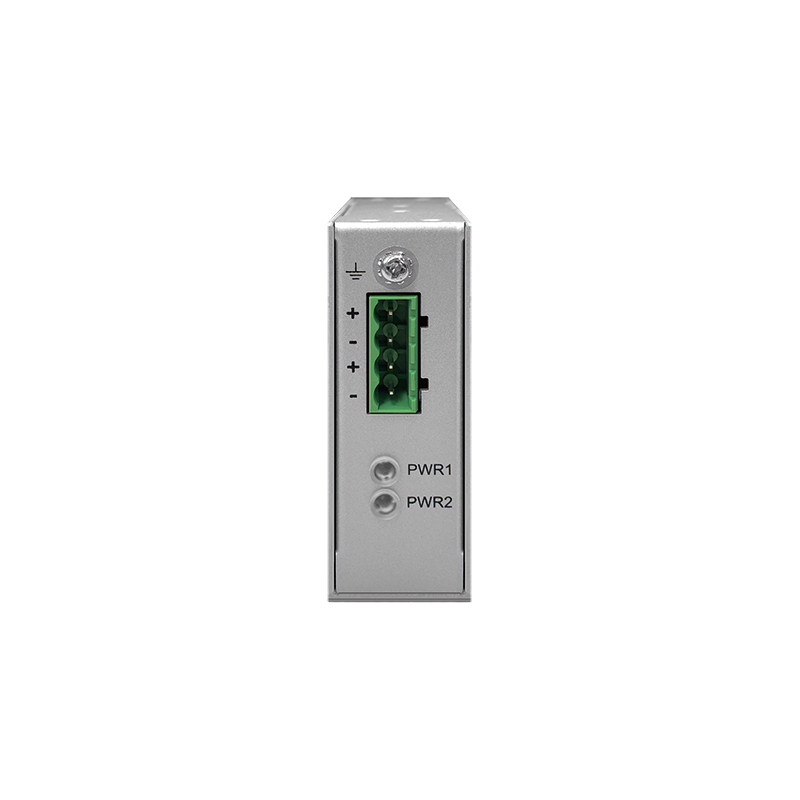

Power Interface Redundant Power Input, DC Input, 4-pin Removable Terminal Block
Reverse Power
Protection
 YES
Power
Consumption
 3 Watt
Indicators
Power Status
Indication
 Power Input Status
Ethernet Port
Indication
 Link & Speed
Standards
Standards
 IEEE 802.3, IEEE 802.3x, Flow Control, Back Pressure, ICMP, TCP/UDP
Mechanical
Dimensions
(H x W x L)
90mm x 25mm x 70.2mm ( 3.54" x 0.98" x 2.76")
(without DIN rail clip)
Weight 0.25 kg (0.55lb)
Installation
・DIN Rail Mount
・Wall Mount (Optional)
Protection IP30
Environment
Operating Temperature -40~75°C (-40°F to 167°F) (Cold Startup at -40°C)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, Non-condensing
Relative Humidity 95% @75°C
Shock IEC 60068-2-27
Vibration IEC 60068-2-6
Free Fall IEC 60068-2-32
Electrical Safety CE
EMC
・FCC Part 15B Class A
・CISPR 22 (EN55032) Class B, EN55024, EN55035
・IEC-61000-4-2, -3, -4, -5, -6, -8 (Level 3)
RoHS RoHS (Pb free)
MTBF >25 years



資源

產品 檔案內容 檔案類型 發佈日期 下載
VLS-2105 VLS-2105 Datasheet .PDF 2022/7/28 Download

索取報價

產品型號 詳細內容 需求數量
VLS-2105 Industrial 5-port Fast Ethernet Layer 2 unmanaged Ethernet Switch, 5 10/100Base T(X) Ports, IP 30, 10V to 60V DC, Rugged and Fanless Design with Compact Size, -40°C to 75°C Extended Temperature
PWA-25W-WT 25W, 48V, 85V AC to 264V AC Power Adapter with 4-pin Terminal Block (5.08mm pitch), Wide Temperature -30°C to +70°C
Wall Mount Wall-mounting Kit for Ethernet Switch
