UWD-1037

產品特色

    • 37 inch color TFT LCD Display with LED Backlight
    • Special aspect ratio 16:4.5,  wide resolution 1920x540
    • High Brightness 1000 nits, Sunlight Readable
    • HDMI, DisplayPort, DVI Interface
    • 24V DC, Low Power Consumption

產品簡介

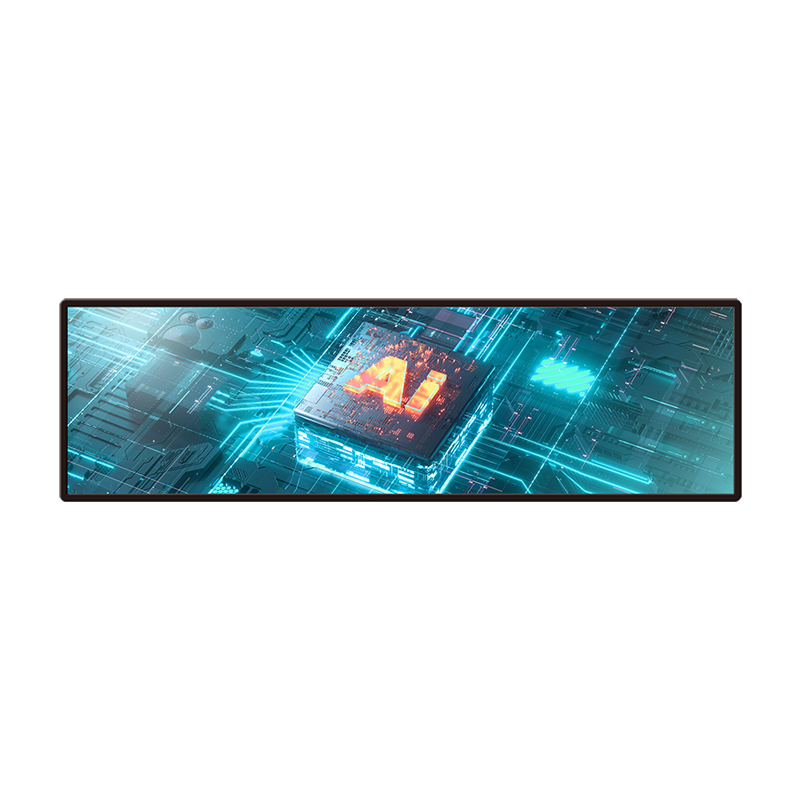

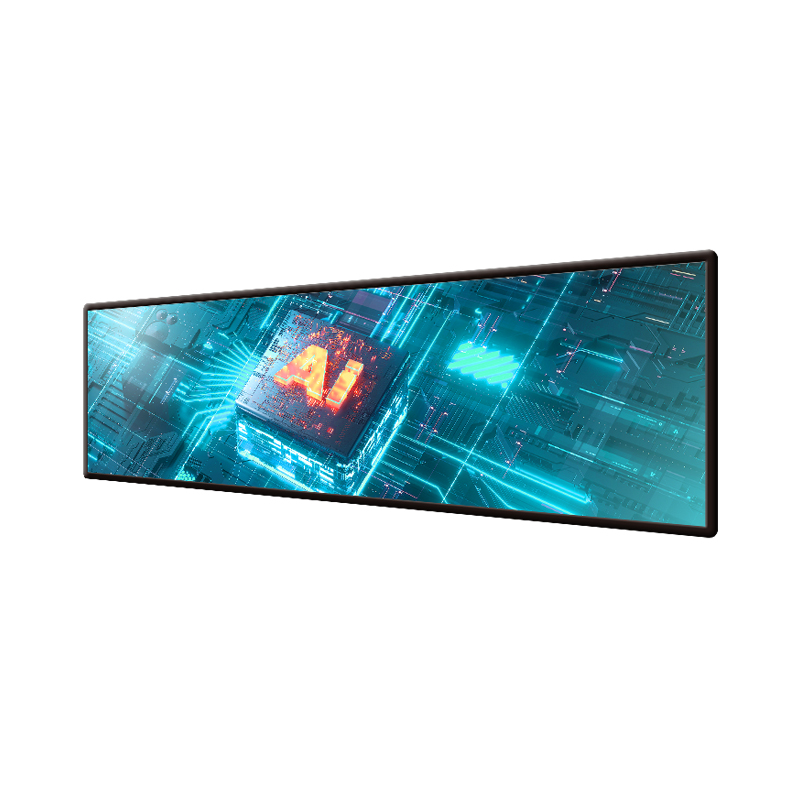

    The Vecow UWD Series, an ultra-wide high brightness display and the latest addition to the Vecow Industrial Display lineup, offers a variety of TFT LCD sizes—including 37”, 43”, and 48.5”—designed for specialized industrial applications.

    Built for outdoor and high-brightness environments, the UWD Series features a 1,000-nit backlight, making it a true sunlight-readable display. Engineered for durability and reliability in harsh conditions, it supports 24V DC power inputs while maintaining low power consumption. With an operating temperature range of -20°C to 60°C, the series is ideal for outdoor digital signage, kiosks, and other AIoT applications.



產品規格

Display
Screen Size 37"
Display Area 904.32 (H) x 254.34 (V)
Brightness (cd/m2) 1000
Resolution 1920 x 540
Aspect Ratio 16:4.5
Contrast Ratio 6500:1
Pixel Pitch (mm) 0.47 (H) x 0.47 (V)
Pixel Pre Inch (PPI) 54
Viewing Angle 178 (H) x 178 (V)
Color Saturation (NTSC) 0.81
Display Colors 16.7M
Respinse Tine (Typical) 11ms
Panel Interface LVDS
Input Interface
- 1 DVI-I
- 1 HDMI
- 1 DisplayPort
OSD Key
OSD Key 4 Keys (power Switch, Menu, +, -)
OSD Control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Power
Power Input  24V
Power Consumption 74W
Mechanical
Dimensions  926.8 x 280.1 x 72.5 mm
Bezel Size 12.9/12.9/11.2/11.2 mm
Mounting
VESA (300 x 75 mm)
Weight 8.8Kg
Environment
Operating Temperature -20°C to 60°C
Storage Temperature -20°C to 60°C
EMC CE, FCC



資源

產品 檔案內容 檔案類型 發佈日期 下載
UWD-1037 UWD-1037 Datasheet .PDF 2025/4/15 Download

索取報價

產品型號 詳細內容 需求數量
UWD-1037 Ultra Wide High-brightness 37" (16:4.5) Display, 1000nits Display
PWA-120WM4P1 120W, 24V, 90V AC to 264V AC Power Adapter with 4-pin Mini-DIN Connector
