PE-6004H

產品特色

    • IEEE 802.3bt PoE++ PSE compliant, up to 90W per port
    • Total PoE power budget up to 200W across 4 ports
    • 4x 2.5GBASE-T ports with Intel® I226-IT controller
    • Supports 2.5G / 1G / 100M / 10M link speeds
    • x4, Gen2 PCI Express interface
    • Standard RJ-45 connectors
    • -25°C to 65°C operating temperature
    • Per-port PoE+ power on/ off control by software API, supports IEEE 1588

產品簡介

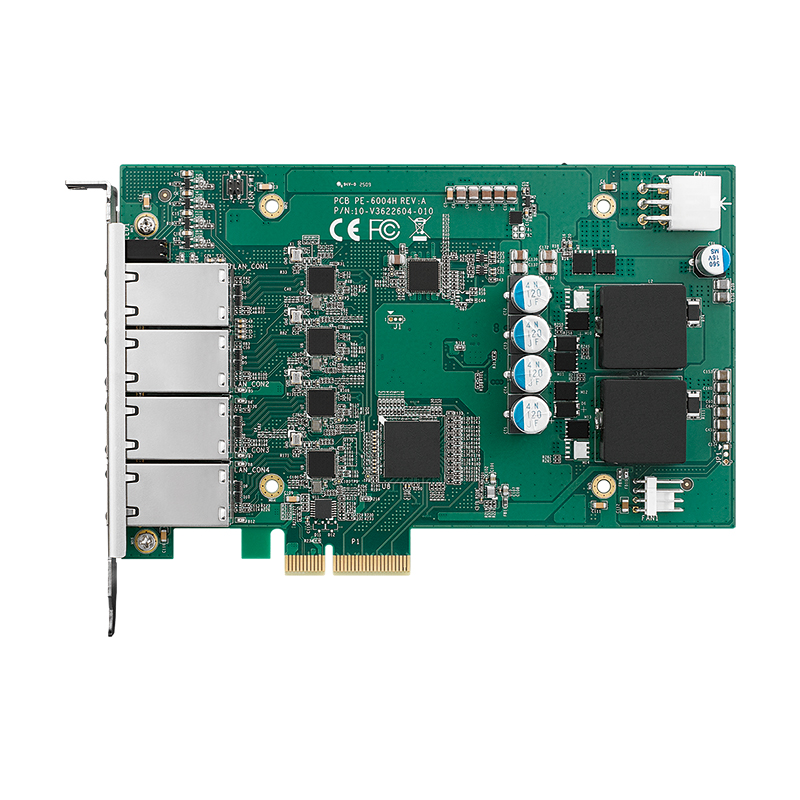

    The Vecow PE-6004H is a high-performance PCI Express expansion card designed for demanding industrial and embedded applications. It addresses the increasing need for high-speed networking and advanced Power over Ethernet (PoE++) capabilities.

    Equipped with four 2.5GBASE-T ports, the PE-6004H utilizes the Intel® I226-IT controller to deliver multi-gigabit Ethernet speeds (2.5G/1G/100M/10M). It fully complies with IEEE 802.3bt PoE++ standards, enabling it to provide significant power over Ethernet to connected devices.

    Both the PE-6004H and PE-6004HF models are built for reliable operation in challenging conditions. The PE-6004HF offers an extended operating temperature range of -25°C to 65°C and 12V power input. These robust features make the PE-6004H series an excellent choice for a wide range of applications, including Edge AI computing, Industrial automation, Smart surveillance, Transportation systems, and embedded vision in robotics


產品規格

Ethernet
Bus Interface x4, Gen2 PCI Express
LAN Controller  Intel® Ethernet Controller I226-IT
Controller Q'ty 4
Data Rate  2.5Gbps/1Gbps/100Mbps/10Mbps
Number of Port 4

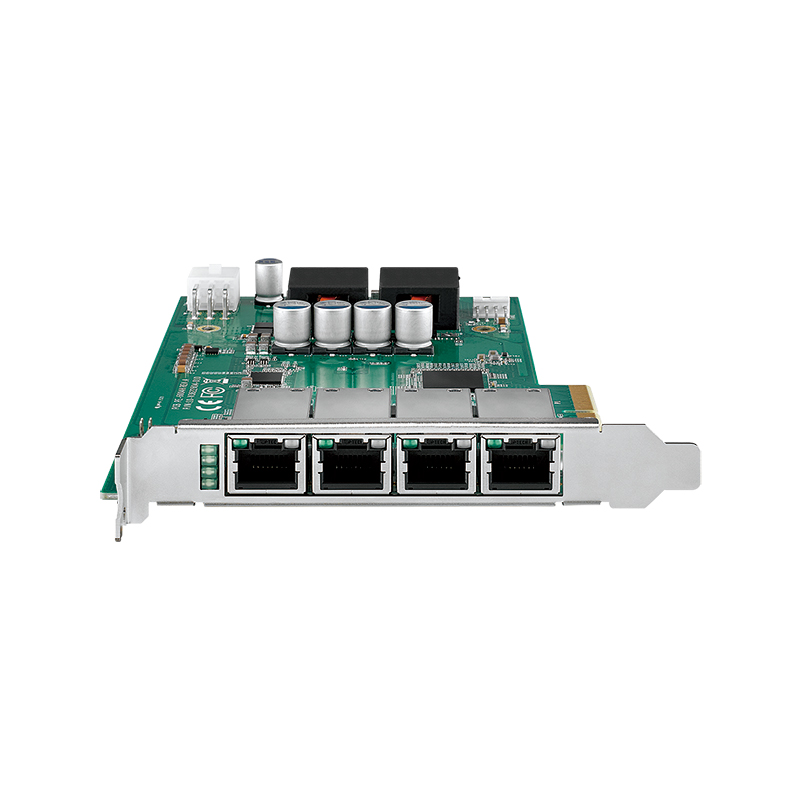

Ethernet Connector RJ-45 connectors
PoE Standard
- In compliant with IEEE 802.3bt PoE++ Type 3 and Type 4 PSE, maximal 90W output on a single PoE++ port
- Compatible with 802.3at (PoE+) and 802.3af (PoE) PD
Power Requirement
Input  Maximum 12V from on-board 6-pin ATX Power Connector
Software Support
OS Windows 11, Windows 10, Linux
Mechanical
Dimension (W x L) 167mm x 111mm (6.6" x 4.37")
Bracket Full height
Environment
Operating Temperature PE-6004H: -25°C to 55°C with air flow (-13°F to 131F)
PE-6004HF: -25°C to 65°C with air flow (-13°F to 149°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 65°C
EMC CE, FCC



資源

產品 檔案內容 檔案類型 發佈日期 下載
PE-6004H PE-6004H Datasheet .PDF 2025/6/17 Download

索取報價

產品型號 詳細內容 需求數量

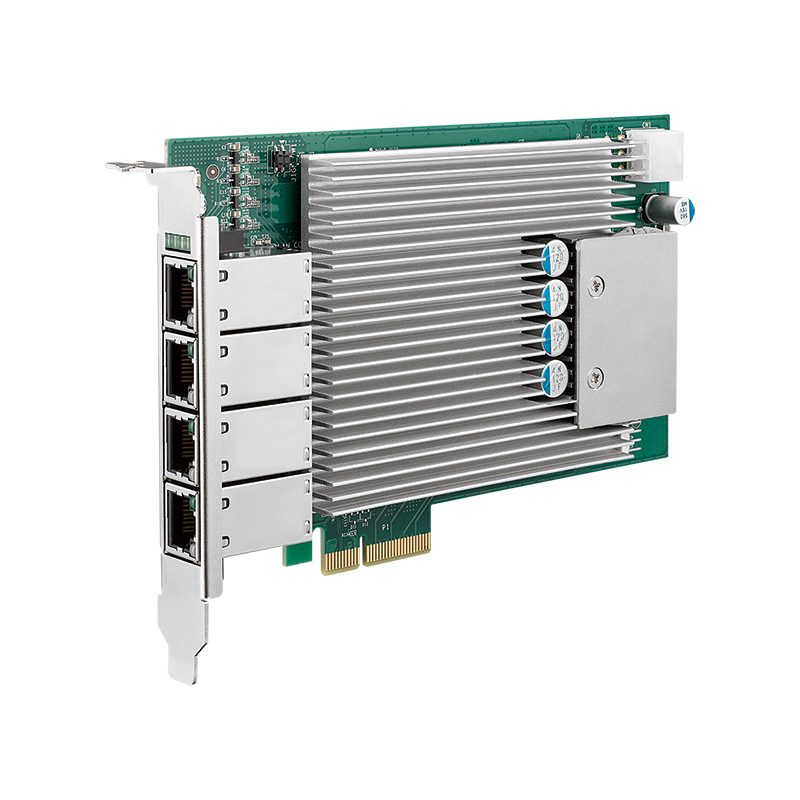

PE-6004H 4-Port 2.5GbE 802.3bt PoE++ PCIe Card with Intel® I226IT, up to 140W Total PoE, Heatsink, -25°C to 55°C

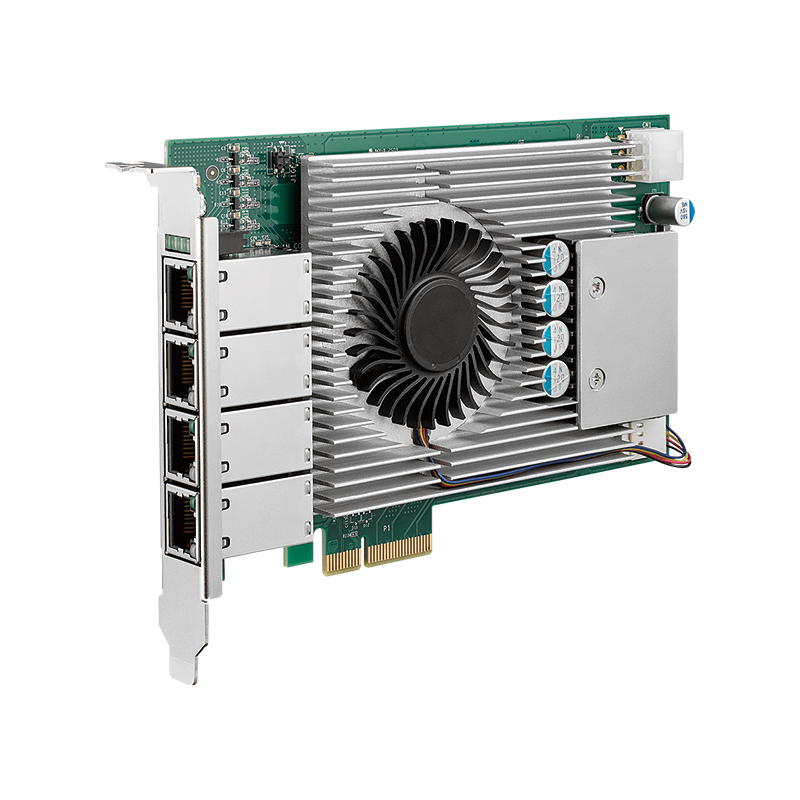

PE-6004HF 4-Port 2.5GbE 802.3bt PoE++ PCIe Card with Intel® I226IT, up to 200W Total PoE, Fansink, -25°C to 65°C
61-1400003-0G5 ATX 8-pin to 6-pin cable for RCX Series
61-1300020-100 ATX 6-pin to 6-pin cable for ECX Series
