System |
|

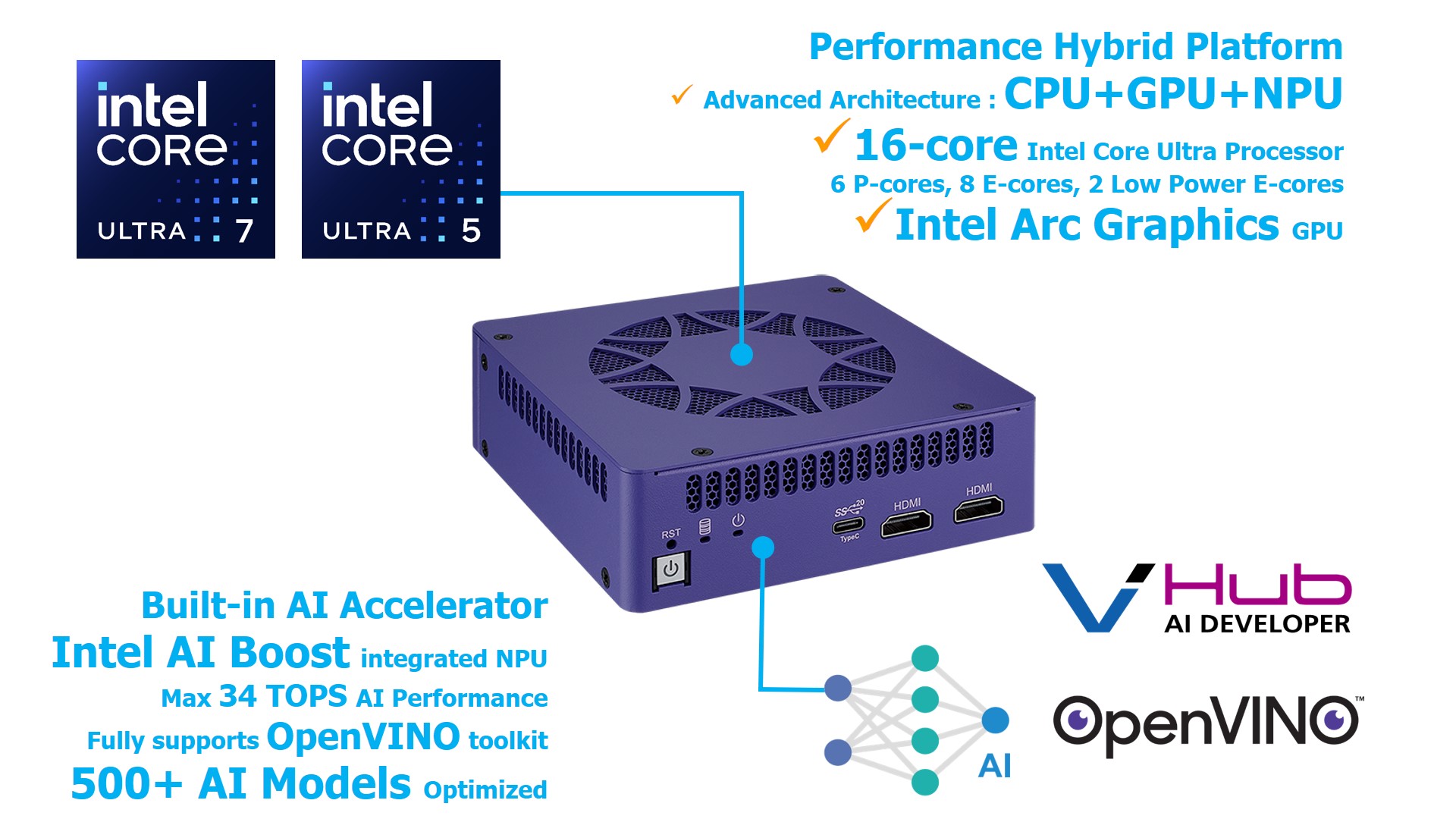

Processor |
Intel® Core™ Ultra 7 165H Processor (16 Cores)
Intel® Core™ Ultra 5 135H Processor (14 Cores)
|
|
NPU |
Integrated Intel® AI Boost neural processing unit |
|
Chipset |
Intel® SoC |
|
GPU |
Built-in processor graphics Intel® Arc™ GPU |
|
BIOS |
AMI |
|
SIO |
IT8659E |
|
Memory |
2 DDR5 5600MHz SO-DIMM, up to 96GB |
|
OS |
Windows 11, Windows 10, Linux |
|

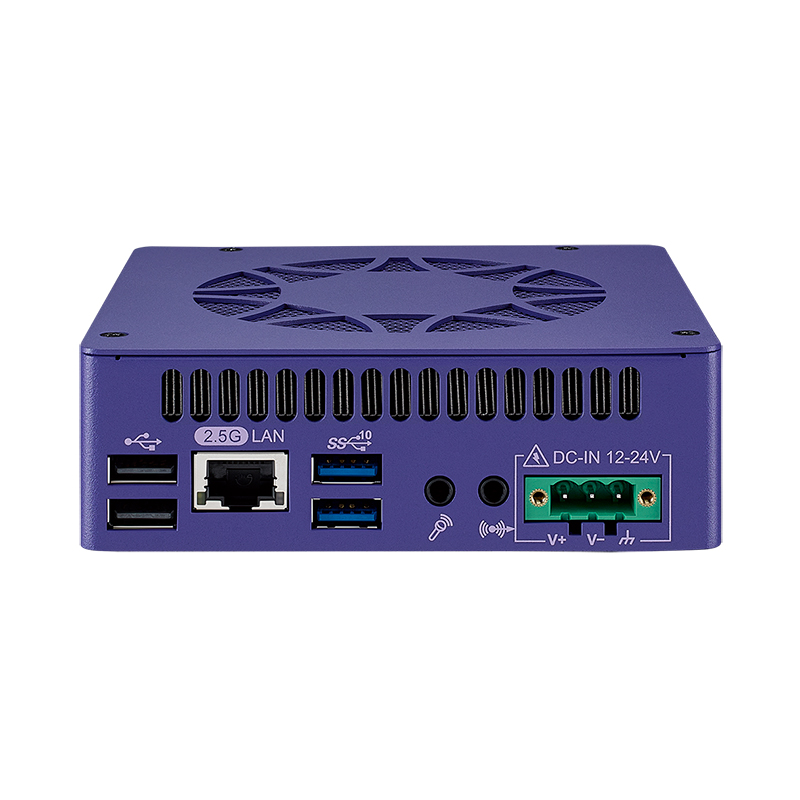

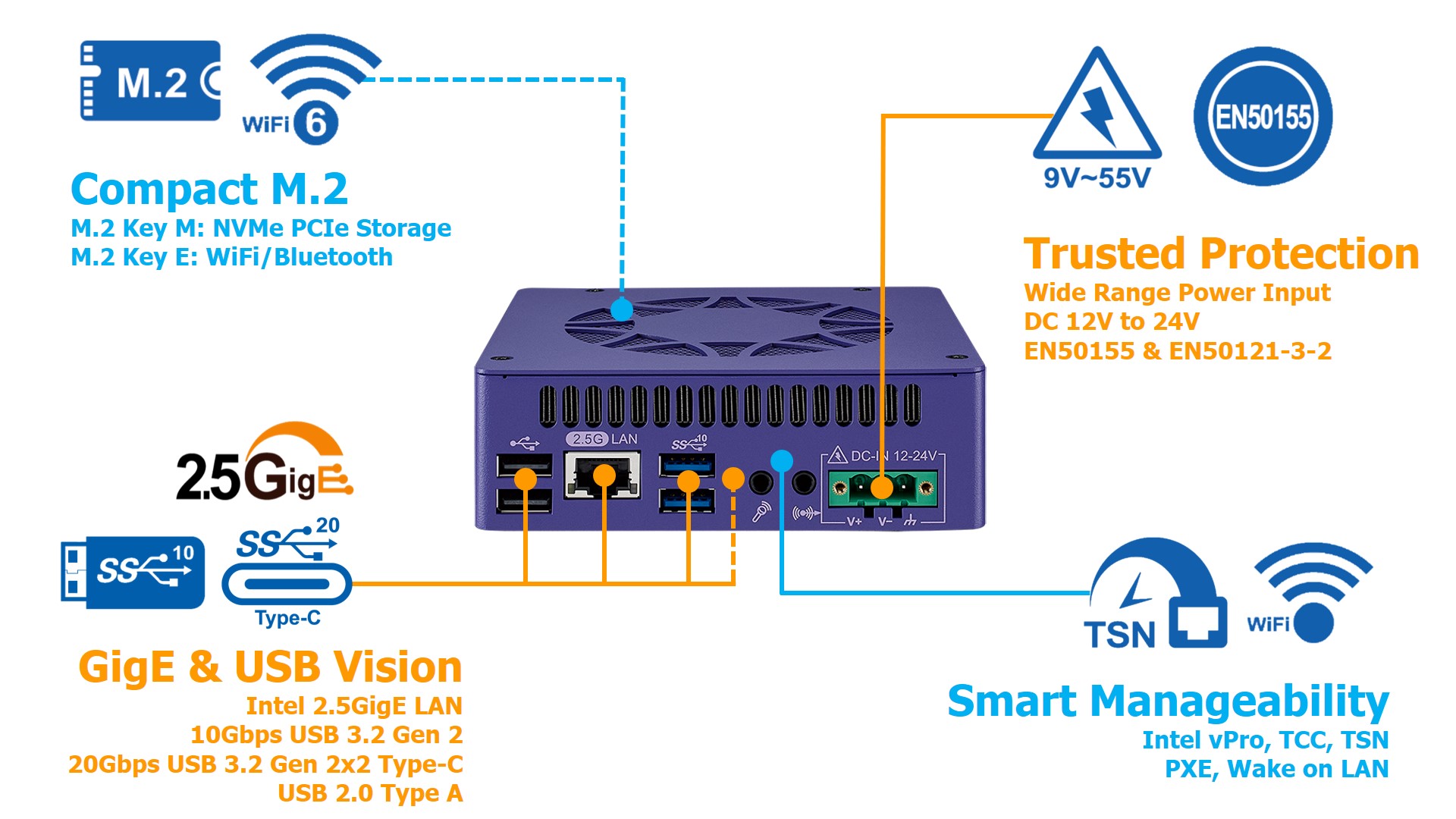

I/O Interface |
|

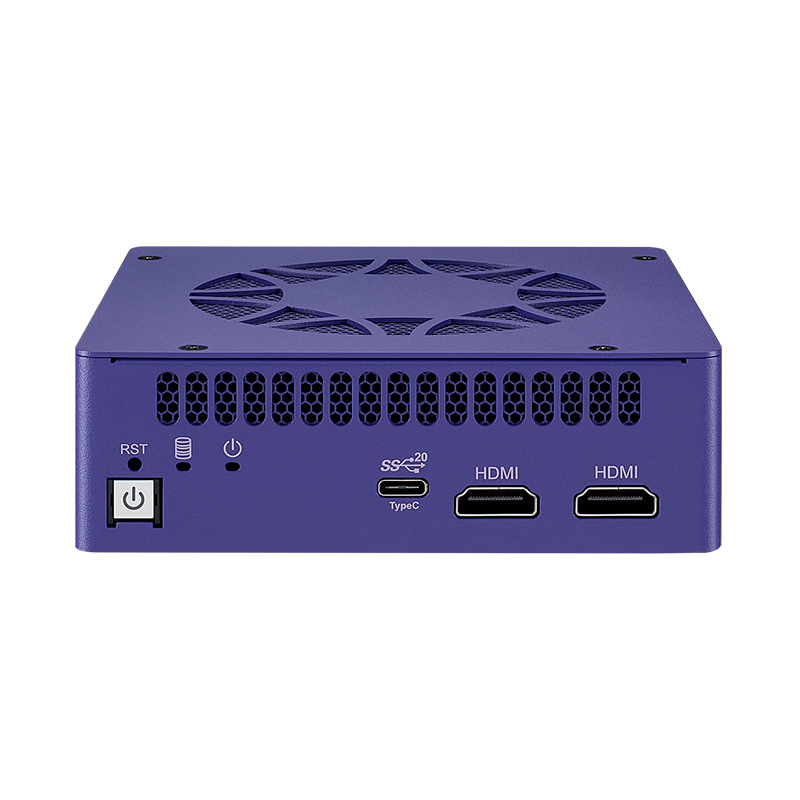

Display |
- 2 HDMI 2.1 : Up to 4096 x 2304 @60Hz
- 1 DisplayPort 1.4 : Up to 3840 x 2160 @60Hz by USB Type-C
|
|
USB |
- 2 USB 3.2 Gen 2 Type A
- 1 USB 3.2 Gen 2x2 Type C (5V/3A)
- 2 USB 2 Type A
|
|
LED |
Power, HDD |
|
Expansion |
|
M.2 |
1 M.2 Key E Socket (2230, PCIe x1/USB) |
|

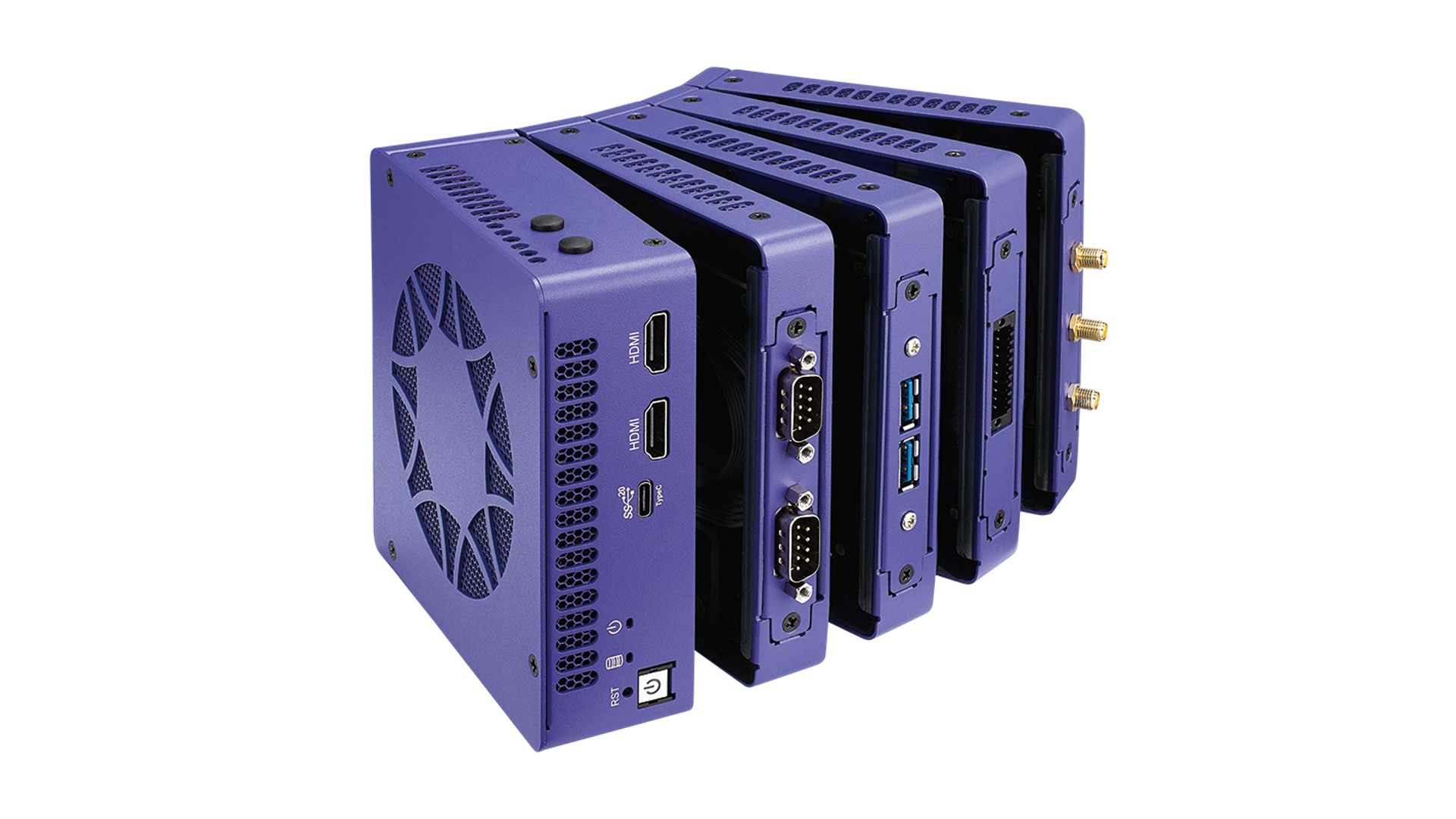

Docking
Expansion
|
2 Expansion Connector for docking module |
|
Storage |
|
M.2 |
- 1 M.2 Key M Socket (2280, PCIe 4.0 x4)
- 1 M.2 Key M Socket (2242, PCIe 4.0 x4)
|
|
Audio |
|
Audio Codec |
Realtek ALC888S-VD, 7.1 Channel HD Audio |
|
Audio Interface |
1 Mic-in, 1 Line-out |
|
Ethernet |
|
LAN |
Intel® I226 2.5GigE LAN supports TSN |
|
Power |
|
Power Input |
DC 12V to 24V |
|
Power Interface |
3-pin Terminal Block：V+,V-, Frame Ground |
|
Others |
|
Watchdog Timer |
Reset : 1 to 255 sec./min. per step |
|
HW Monitor |
Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
|
Mechanical |
|
Dimension |
117mm x 120mm x 38mm (4.61"x 4.72"x 1.49") |
|
Weight |
0.9 kg (1.98 lb) |
|
Mounting |
- Wallmount by mounting bracket
- VESA Mount (Optional)
- DIN Rail Mount (Optional)
|
|
Environment |
|
Operating Temperature |
0°C to 55°C (-13°F to 131°F), with air flow |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Humidity |
5% to 95% Humidity, non-condensing |
|
Relative Humidity |
95% @55°C |
|
Shock/
Vibration
|
- IEC 61373: 2010
- Railway Applications : Rolling Stock Equipment,
Shock and Vibration Tests
|
|
EMC |
CE, FCC, ICES, EN50155, EN50121-3-2 |
